-- Tubular Solenoid --
Item No/Type:RG-T-2551L
Name:Tubular Solenoid
Tubular Solenoid
Description:




                              Plunger Weight: 43g / Total Weight: 178g

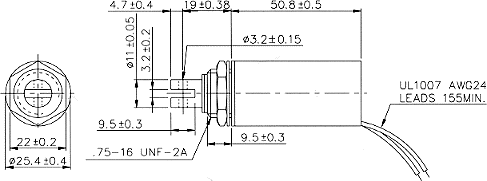

                              Shown Energized     UNIT: mm

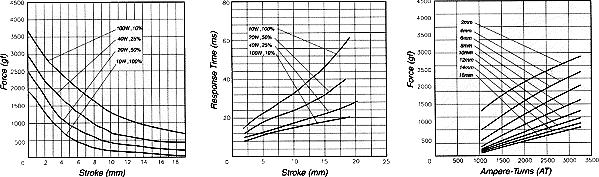

                                  STROKE Vs FORCE
                                  STROKE Vs RESPONSE TIME
                                  AMPERE-TURNS Vs FORCE



















                                        COIL DATA
                                        Heat Sink: 100 x 100 x 3mm(alumimum)













                                        Duty cycle(%)=  X 100%
                                        Continuous

                                          (100%)
                                        Or less

                                          (50%)
                                        Or less

                                          (25%)
                                        Or less

                                          (10%)




                                        MAX. "on" time in seconds

                                        360
                                        32
                                        8




                                        Watts at 20oC
                                        10
                                        20
                                        40
                                        100




                                        Ampere-turns at 20oC
                                        1090
                                        1541
                                        2180
                                        3447




                                        Type no.
                                        Resistance (20oC)

                                             ±10%
                                        No. turns
                                        Volts DC




                                        RG-T-2551L06AA
                                        3.6
                                        654
                                        6
                                        8.5
                                        12
                                        19




                                        RG-T-2551L12AA
                                        14.4
                                        1309
                                        12
                                        17
                                        24
                                        38




                                        RG-T-2551L24AA
                                        57.6
                                        2614
                                        24
                                        34
                                        48
                                        76




                                        RG-T-2551L48AA
                                        230.4
                                        5240
                                        48
                                        68
                                        96
                                        152
