-- Tubular Solenoid --
Item No/Type:RG-T-1325L

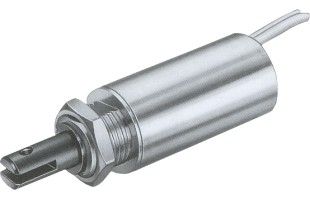

Name:Tubular Solenoid
Tubular Solenoid
Description:




                              Plunger Weight: 4.9g / Total Weight: 23g

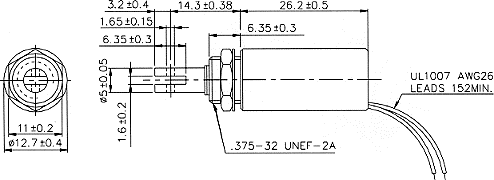

                              Shown Energized     UNIT: mm

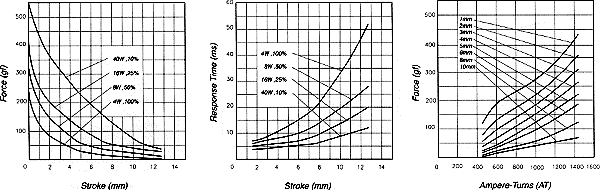

                                  STROKE Vs FORCE
                                  STROKE Vs RESPONSE TIME
                                  AMPERE-TURNS Vs FORCE



















                                        COIL DATA
                                        Heat Sink: 50 x 50 x 3mm(alumimum)













                                        Duty cycle(%)=  X 100%
                                        Continuous

                                          (100%)
                                        Or less

                                          (50%)
                                        Or less

                                          (25%)
                                        Or less

                                          (10%)




                                        MAX. "on" time in seconds

                                        50
                                        5
                                        2




                                        Watts at 20oC
                                        4
                                        8
                                        16
                                        40




                                        Ampere-turns at 20oC
                                        453
                                        640
                                        905
                                        1440




                                        Type no.
                                        Resistance (20oC)

                                             ±10%
                                        No. turns
                                        Volts DC




                                        RG-T-1325L06AA
                                        9
                                        680
                                        6
                                        8.5
                                        12
                                        19




                                        RG-T-1325L12AA
                                        36
                                        1359
                                        12
                                        17
                                        24
                                        38




                                        RG-T-1325L24AA
                                        144
                                        2700
                                        24
                                        34
                                        48
                                        76




                                        RG-T-1325L48AA
                                        576
                                        5400
                                        48
                                        68
                                        96
                                        152
