-- Push-Pull Solenoid --
Item No/Type:RG-T-4122SL
Name:Push-Pull Solenoid

Description:




                              Plunger Weight: 60g / Total Weight: 200g

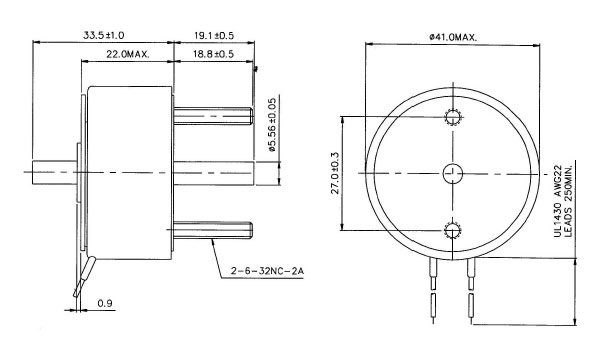

                              Shown Energized     UNIT: mm

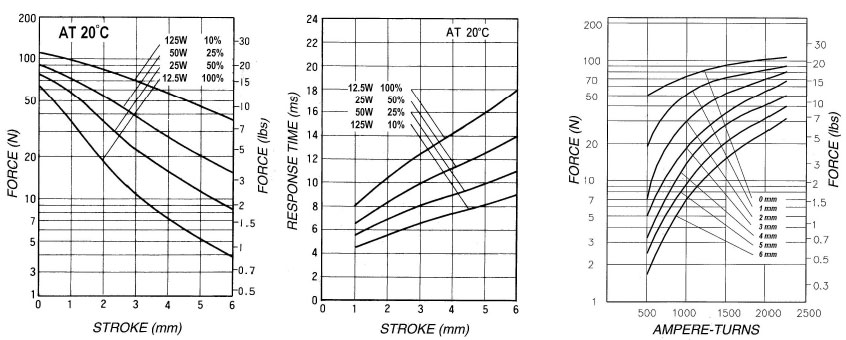

                                  STROKE Vs FORCE
                                  STROKE Vs RESPONSE TIME
                                  AMPERE-TURNS Vs FORCE




                                  Push-Pull Solenoid














                                        COIL DATA
                                        Heat Sink: 160 x 160 x 3mm(alumimum)













                                        Duty cycle(%)=  X 100%
                                        Continuous

                                          (100%)
                                        Or less

                                          (50%)
                                        Or less

                                          (25%)
                                        Or less

                                          (10%)




                                        MAX. "on" time in seconds

                                        100
                                        36
                                        9




                                        Watts at 20oC
                                        12.5
                                        25
                                        50
                                        125




                                        Ampere-turns at 20oC
                                        714
                                        1000
                                        1425
                                        2250




                                        Type no.
                                        Resistance (20oC)

                                             ±10%
                                        No. turns
                                        Volts DC




                                        RG-T-4122SL06AA
                                        2.88
                                        343
                                        6
                                        8.5
                                        12
                                        19




                                        RG-T-4122SL12AA
                                        11.5
                                        685
                                        12
                                        17
                                        24
                                        38




                                        RG-T-4122SL24AA
                                        46
                                        1369
                                        24
                                        34
                                        48
                                        76




                                        RG-T-4122SL48AA
                                        184
                                        2737
                                        48
                                        68
                                        96
                                        152
