-- Push-Pull Solenoid --
Item No/Type:RG-T-1913SL
Name:Push-Pull Solenoid
Push-Pull Solenoid
Description:




                              Plunger Weight: 4g / Total Weight: 20g

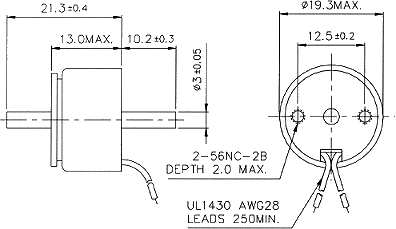

                              Shown Energized     UNIT: mm

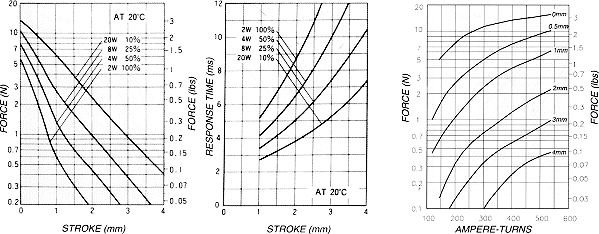

                                  STROKE Vs FORCE
                                  STROKE Vs RESPONSE TIME
                                  AMPERE-TURNS Vs FORCE











                              COIL DATA




                                  Duty cycle(%)=  X 100%
                                  Continuous

                                    (100%)
                                  Or less

                                    (50%)
                                  Or less

                                    (25%)
                                  Or less

                                    (10%)




                                  MAX. "on" time in seconds

                                  100
                                  36
                                  7




                                  Watts at 20oC
                                  2
                                  4
                                  8
                                  20




                                  Ampere-turns at 20oC
                                  170
                                  240
                                  340
                                  537




                                  Type no.
                                  Resistance (20oC)

                                       ±10%
                                  No. turns
                                  Volts DC




                                  RG-T-1913SL03AA
                                  4.9
                                  295
                                  3
                                  4.2
                                  6
                                  9.5




                                  RG-T-1913SL06AA
                                  21.5
                                  620
                                  6
                                  8.5
                                  12
                                  19




                                  RG-T-1913SL12AA
                                  89
                                  1230
                                  12
                                  17
                                  24
                                  38




                                  RG-T-1913SL24AA
                                  307
                                  2120
                                  24
                                  34
                                  48
                                  76
