-- Open Frame Solenoid --
Item No/Type:RG-O-1578S
Name:Open Frame Solenoid

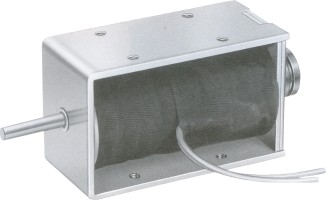

Open Frame Solenoid
Description:




                              Plunger Weight: 91g / Total Weight: 800g

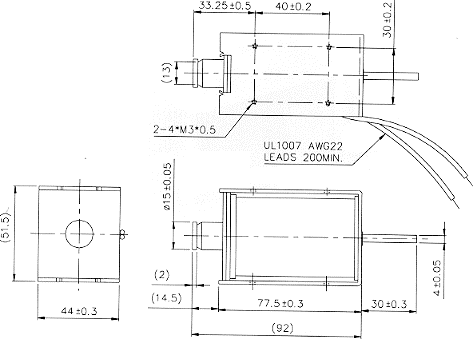

      Shown Energized     UNIT: mm

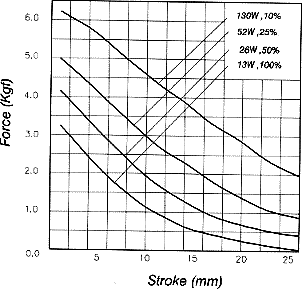

          STROKE Vs FORCE

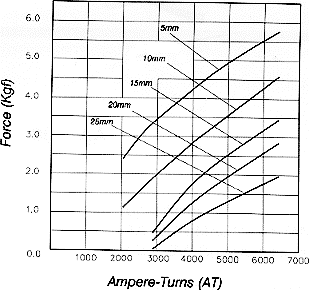

          AMPERE-TURNS Vs FORCE








      COIL DATA




          Duty cycle(%)=  X 100%
          Continuous

            (100%)
          Or less

            (50%)
          Or less

            (25%)
          Or less

            (10%)




          MAX. "on" time in seconds

          160
          80
          32




          Watts at 20oC
          13
          26
          52
          130




          Ampere-turns at 20oC
          2030
          2870
          4060
          6430




          Type no.
          Resistance (20oC)

               ±10%
          No. turns
          Volts DC




          RG-O-1578S06AA
          2.8
          940
          6
          8.5
          12
          19




          RG-O-1578S12AA
          11.1
          1930
          12
          17
          24
          38




          RG-O-1578S24AA
          44.3
          3820
          24
          34
          48
          76




          RG-O-1578S48AA
          177
          7400
          48
          68
          96
          152
