-- Open Frame Solenoid --
Item No/Type:RG-O-1250S
Name:Open Frame Solenoid
Open Frame Solenoid
Description:




                              Plunger Weight: 41g / Total Weight: 208g

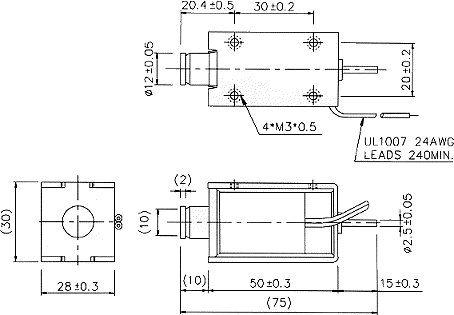

      Shown Energized     UNIT: mm







          STROKE Vs FORCE


          AMPERE-TURNS Vs FORCE








      COIL DATA




          Duty cycle(%)=  X 100%
          Continuous

            (100%)
          Or less

            (50%)
          Or less

            (25%)
          Or less

            (10%)




          MAX. "on" time in seconds

          140
          50
          9




          Watts at 20oC
          5.5
          11
          22
          55




          Ampere-turns at 20oC
          854
          1210
          1708
          2704




          Type no.
          Resistance (20oC)

               ±10%
          No. turns
          Volts DC




          RG-O-1250S06AA
          6.5
          925
          6
          8.5
          12
          19




          RG-O-1250S12AA
          26.2
          1865
          12
          17
          24
          38




          RG-O-1250S24AA
          104.5
          3736
          24
          34
          48
          76




          RG-O-1250S48AA
          419
          7455
          48
          68
          96
          152
