-- Open Frame Solenoid --

Item No/Type:RG-O-1240S
Name:Open Frame Solenoid

Open Frame Solenoid
Description:



Plunger Weight: 32g / Total Weight: 147g

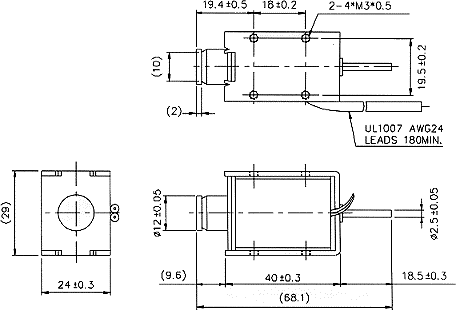

Shown Energized ??UNIT: mm

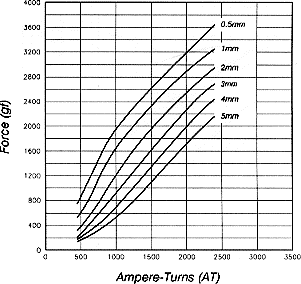

STROKE Vs FORCE
AMPERE-TURNS Vs FORCE

COIL DATA
Duty cycle(%)= X 100% Continuous
(100%)
Or less
(50%)
Or less
(25%)
Or less
(10%)
MAX. "on" time in seconds 100 36 7
Watts at 20oC 4.2 8.4 16.8 42
Ampere-turns at 20oC 655 925 1310 2075
Type no. Resistance (20oC)
?0%
No. turns Volts DC
RG-O-1240S06AA 8.6 930 6 8.5 12 19
RG-O-1240S12AA 34 1850 12 17 24 38
RG-O-1240S24AA 137 3680 24 34 48 76
RG-O-1240S48AA 548 7590 48 68 96 152
