-- Open Frame Solenoid --
Item No/Type:RG-O-0630L
Name:Open Frame Solenoid
Open Frame Solenoid
Description:




Plunger Weight: 5g / Total Weight: 42g


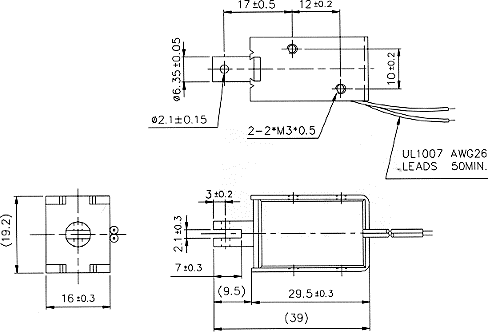

Shown Energized ??UNIT:
mm







    STROKE Vs FORCE

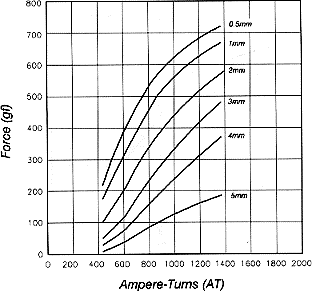

    AMPERE-TURNS Vs FORCE


COIL DATA




    Duty cycle(%)=  X 100%
    Continuous
(100%)
    Or less
(50%)
    Or less
(25%)
    Or less
(10%)



    MAX. "on" time in seconds

    55
    19
    3



    Watts at 20oC
    2.4
    4.8
    9.6
    24



    Ampere-turns at 20oC
    432
    615
    864
    1368



    Type no.
    Resistance (20oC)
 ?0%
    No. turns
    Volts DC



    RG-O-0630L06AA
    15
    1080
    6
    8.5
    12
    19



    RG-O-0630L12AA
    60
    2160
    12
    17
    24
    38



    RG-O-0630L24AA
    240
    4320
    24
    34
    48
    76



    RG-O-0630L48AA
    960
    8640
    48
    68
    96
    152
