-- Open Frame Solenoid --
Item No/Type:RG-O-0626L
Name:Open Frame Solenoid
Open Frame Solenoid
Description:




Plunger Weight: 5g / Total Weight: 43g


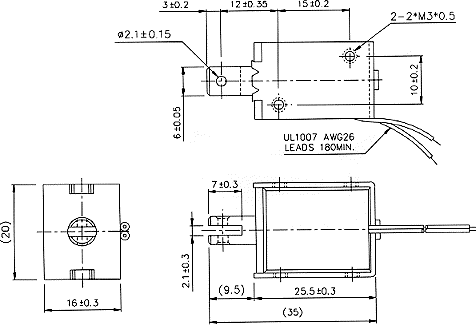

Shown Energized ??UNIT:
mm







    STROKE Vs FORCE

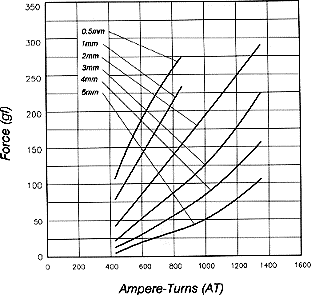

    AMPERE-TURNS Vs FORCE


COIL DATA




    Duty cycle(%)=  X 100%
    Continuous
(100%)
    Or less
(50%)
    Or less
(25%)
    Or less
(10%)



    MAX. "on" time in seconds

    55
    19
    3



    Watts at 20oC
    2.1
    4.2
    8.4
    21



    Ampere-turns at 20oC
    428
    605
    856
    1353



    Type no.
    Resistance (20oC)
 ?0%
    No. turns
    Volts DC



    RG-O-0626L06AA
    17.1
    1220
    6
    8.5
    12
    19



    RG-O-0626L12AA
    68.6
    2447
    12
    17
    24
    38



    RG-O-0626L24AA
    274
    4886
    24
    34
    48
    76



    RG-O-0626L48AA
    1097
    9782
    48
    68
    96
    152
