-- Rotary Solenoid --

Item No/Type:RG-RT-5935
Name:Rotary Solenoids

Rotary Solenoid
Description:

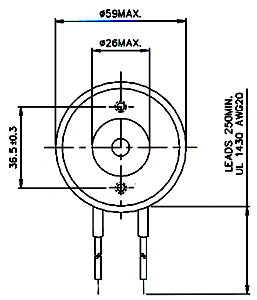

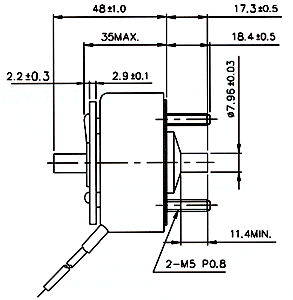

UNIT:mm

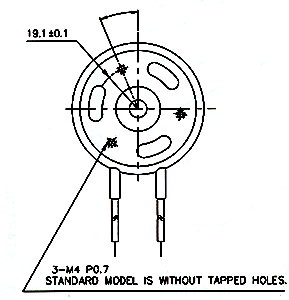

Shown De-energized
Right Hand Rotation
1/2 ROTATION ANGLE !O3¢X TO LEFT OF CENTER FOR R.H.ROTATION. RIGHT CENTER FOR L.H.ROTATION.

COIL DATA
Heat Sink:90x90x3mm(alumimum) Return spring torque:0.0055~0.009N.m
Duty cycle(%)= X 100% Continuous
(100%)
Or less
(75%)
Or less
(50%)
Or less
(25%)
Or less
(10%)
MAX. "on" time in seconds 115 87 36 13
Watts at 20oC 29 38.5 58 116 290
Ampere-turns at 20oC 1240 1440 1760 2490 3920
Gross starting torque at 20¢XC(N!Pm)
A:25¢X
0.53 0.26 1.02 1.8 3.2
B:35¢X
0.39 0.53 0.75 1.38 2.14
C:45¢X
0.276 0.276 0.4 0.75 1.26
D:67.5¢X
0.24 0.24 0.355 0.65 1.0
E:95¢X
0.138 0.138 0.195 0.38 0.6
Type no. Resistance (20oC)
!O10%
No. turns Volts DC
SMTR-5935 8.3AA 2.23 336 8.3 9.6 12 16 26
SMTR-5935 10AA 3.6 432 10 12 15 21 33
SMTR-5935 13AA 5.24 500 13 15 18 26 41
SMTR-5935 16AA 9.51 708 16 19 23 33 52
SMTR-5935 21AA 14.4 858 21 24 29 41 66
SMTR-5935 26AA 23.7 1110 26 30 37 52 83
SMTR-5935 33AA 38.2 1411 33 38 47 66 104
SMTR-5935 41AA 54.7 1638 41 48 59 83 131
SMTR-5935 52AA 93.7 2184 52 61 74 104 165
SMTR-5935 66AA 143 2645 66 76 93 131 207
SMTR-5935 83AA 223 3328 83 96 117 165 261
SMTR-5935 104AA 338 4004 104 121 147 208 329
SMTR-5935 131AA 550 5088 131 152 185 262 -
SMTR-5935 162AA 790 5860 165 192 233 330 -
SMTR-5935 208AA 1233 7260 208 242 294 - -
: Rotation Direction and Angle

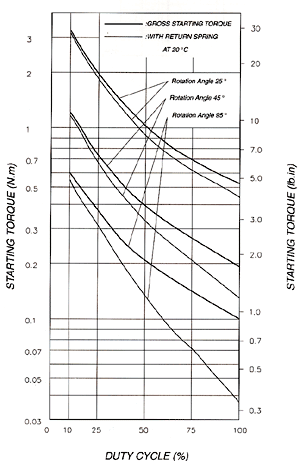

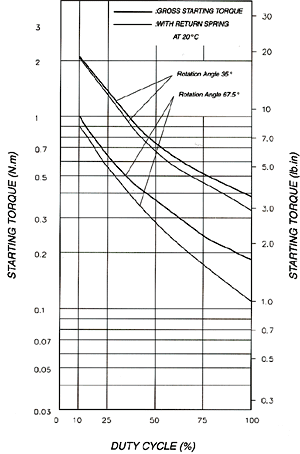

DUTY CYCLE Vs STARTING TORQUE

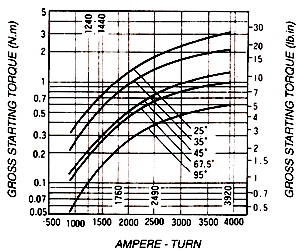

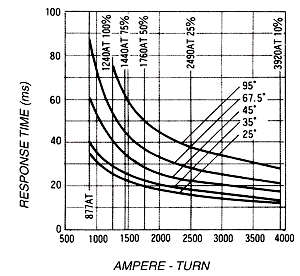

AMPERE TURN Vs GROSS STARTING TORQUE AMPERE TURN Vs RESPONSE TIME
