-- Rotary Solenoid --

Item No/Type:RG-RT-4925
Name:Rotary Solenoid

Rotary Solenoid
Description:



Weight: 200g

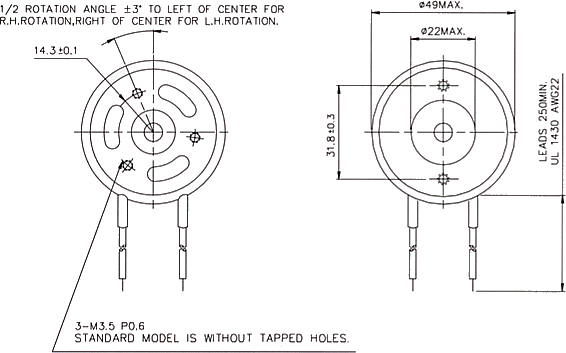

UNIT: mm
Shown De-energized
Right Hand Rotation


COIL DATA Heat Sink: 190 x 190 x 3mm (alumimum)
Return spring torque: 0.026~0.035 N.m
Duty cycle(%)= X 100% Continuous
(100%)
Or less
(75%)
Or less
(50%)
Or less
(25%)
Or less
(10%)
MAX. "on" time in seconds 110 100 36 10
Watts at 20oC 21 28 42 84 210
Ampere-turns at 20oC 842 966 1190 1685 2660
Gross starting torque at 20oC (N.m) A:25o 0.22 0.3 0.47 0.84 1.39
B:35o 0.104 0.15 0.24 0.47 0.84
C:45o 0.081 0.127 0.195 0.39 0.725
D:67.5o 0.058 0.081 0.127 0.23 0.45
E:95o 0.022 0.035 0.046 0.098 0.185
Type no. Resistance (20oC)
±10%
No. turns Volts DC
RG-RT-49257.6AA 3.2 360 7.6 8.7 11 15 24
RG-RT-49259.5AA 4.91 440 9.5 11 13 19 30
RG-RT-492512AA 7.72 550 12 14 17 24 38
RG-RT-492515AA 11.1 636 15 17 21 30 48
RG-RT-492519AA 18.8 840 19 22 27 38 60
RG-RT-492524AA 30.5 1088 24 28 34 48 76
RG-RT-492530AA 44.9 1275 30 34 43 60 95
RG-RT-492538AA 70.9 1596 38 43 54 76 120
RG-RT-492548AA 109 1974 48 56 67 95 150
RG-RT-492560AA 175 2496 60 69 85 120 190
RG-RT-492576AA 270 3042 76 87 107 151 239
RG-RT-492595AA 414 3600 95 109 134 190 301
RG-RT-4925122AA 610 4200 122 140 173 245 386
RG-RT-4925151AA 940 5200 151 174 213 301 -
RG-RT-4925190AA 1560 6820 190 219 268 379 -
: Rotation Direction and Angle

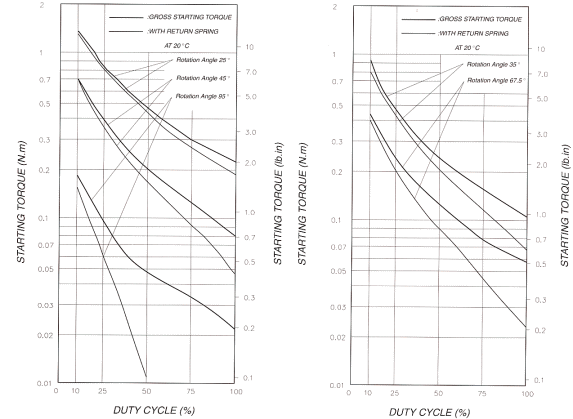

DUTY CYCLE Vs STARTING TORQUE

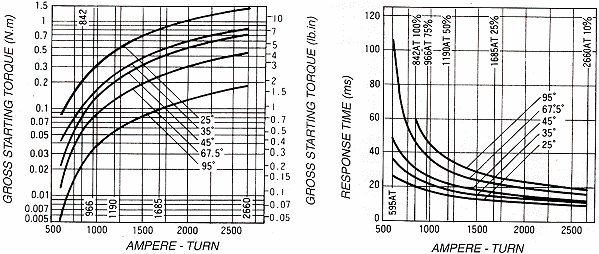

AMPERE TURN Vs GROSS STARTING TORQUE AMPERE-TURN Vs RESPONSE TIME
