-- Push-Pull Solenoid --
Item No/Type:RG-T-1421SL
Name:Push-Pull Solenoid
Push-Pull Solenoid
Description:




                              Plunger Weight: 3g / Total Weight: 18g

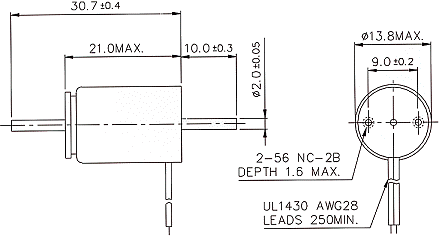

                              Shown Energized     UNIT: mm

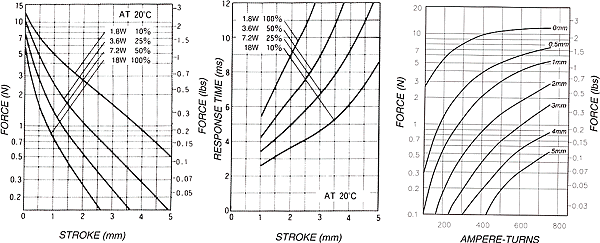

                                  STROKE Vs FORCE
                                  STROKE Vs RESPONSE TIME
                                  AMPERE-TURNS Vs FORCE



















                                        COIL DATA














                                        Duty cycle(%)=  X 100%
                                        Continuous

                                          (100%)
                                        Or less

                                          (50%)
                                        Or less

                                          (25%)
                                        Or less

                                          (10%)




                                        MAX. "on" time in seconds

                                        100
                                        36
                                        7




                                        Watts at 20oC
                                        1.8
                                        3.6
                                        7.2
                                        18




                                        Ampere-turns at 20oC
                                        236
                                        334
                                        472
                                        746




                                        Type no.
                                        Resistance (20oC)

                                             ±10%
                                        No. turns
                                        Volts DC




                                        RG-T-1421SL06AA
                                        5
                                        415
                                        3
                                        4.2
                                        6
                                        9.5




                                        RG-T-1421SL12AA
                                        20
                                        800
                                        6
                                        8.5
                                        12
                                        19




                                        RG-T-1421SL24AA
                                        80
                                        1600
                                        12
                                        17
                                        24
                                        38




                                        RG-T-1421SL48AA
                                        320
                                        3130
                                        24
                                        34
                                        48
                                        76
