-- Permanent Magnet Solenoid --

Item No/Type:RG-K-1253L
Name:Permanent Magnet Solenoid

Permanent Magnet Solenoid
Description:



Plunger Weight: 43g / Total Weight: 211g

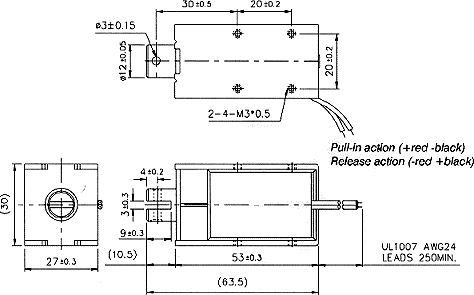

Shown Energized     UNIT: mm

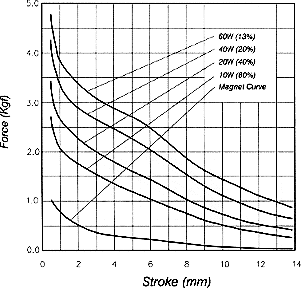

STROKE Vs FORCE

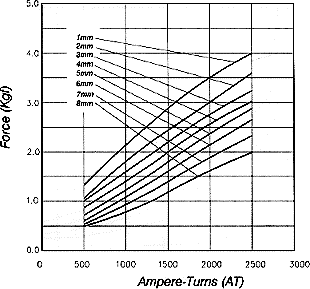

AMPERE-TURNS Vs FORCE

COIL DATA Release Voltage: Rated Voltage of 12 Watts !O 10%(Reference)
Duty cycle(%)= X 100% Or less
(33%)
Or less
(20%)
Or less
(10%)
Or less
(7%)
MAX. "on" time in seconds 400 90 35 20
Watts at 20oC 10 20 40 60
Ampere-turns at 20oC 950 1341 1898 2327
Type no. Resistance (20oC)
!O10%
No. turns Volts DC
RG-K-1253L5.4AA 3.6 565 6 8 12 15
RG-K-1253L10.7AA 14.4 1130 12 17 24 29
RG-K-1253L21.5AA 57.6 2310 24 34 48 59
RG-K-1253L42.9AA 230 4500 48 68 96 117
